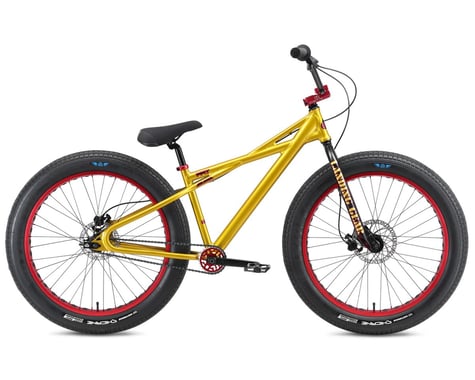

SE Racing Fat Quadangle 26" Bike Description:
For those of you that prefer a ride a bit thicker, SE brings you the Fat Quadangle 26" bike. This fat BMX bike is centered around the unique Quadangle frame design featuring an oversized downtube, integrated head tube and a legendary looptail rear end. The bike comes equipped with Tektro hydraulic disc brakes for powerful and consistent braking when trying to slow down this big gal. Just in case the quadangle frame and fat 3.5" tires didn't stand out enough for you, SE has a popping Royal Gold paint job on this bike teamed up with red rims and other components. Get down with the thickness!
Specifications:
- Frame: 6060 Aluminum, Single Downtube Fat Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts
- Fork: Full Cr-Mo Landing Gear forks, Disc Tabs, 450mm Axle to Crown, 38mm offset, 135mm Spaced Dropouts
- Headset: FSA Orbit CE, Sealed Integrated (1-1/8")
- Stem: Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts (55mm reach)
- Bars: Big Honkin Cr-Mo (29" rise) (7" width) (12° backsweep, 2° upsweep)
- Grips: Special edition ODI Mushroom II grips
- Cranks: SE V-Ridge 3-piece chromoly (175mm)
- Bottom Bracket: External Sealed Euro Bottom Bracket (200mm spindle length) (19mm spindle diameter)
- Pedals: X-Pedo Low-profile Platform w/ Removable Pins
- Sprocket: SE Racing Sprocket (27T)
- Chain: KMC S1
- Wheelset: Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, w/ SE Bubble Fat 65mm Rims
- Driver: Cassette (14T)
- Tires: Vee Tire Co x SE Racing Chicane (26" x 3.50") (72tpi)
- Seat: SE Flyer seat with custom SE bottle opener brace
- Seat Post: Micro-Adjust Alloy (27.2mm)
- Seat Clamp: Alloy (31.8mm inner diameter)
- Brake Lever: Tektro HD-M285, 2-Finger Alloy, Front & Rear
- Brakes: Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor
- Extras: Alloy valve caps, SE chain tensioners
- Color: Royal Gold
- Weight: 35.8 lbs / 16.23 kgs
Geometry:
- Toptube Length: 22.2"
- Chainstay Length: 17.8"
- Headtube Angle: 70°
- Seattube Angle: 72°
- Bottom Bracket Height: 12.4"
- Standover: 30"
- Recommended Sizing Guide: 5'4" +
