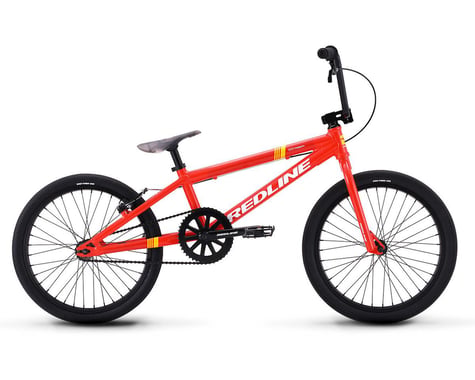

The Redline MX Pro bike is complete and ready to race. The MX20 Pro is top of class for value and quality. Lightweight and easy to maneuver is made for your your growing BMX racer.
Frame: 6061 Alloy with Integrated Headtube
Fork: Redline Race Hi-Ten with Tapered Legs
Headset: 1-1/8" Integrated
Stem: Redline Hollowpoint Aluminum 1-1/8" 55mm Threadless Frontload
Bars: Redline Race 8" 10° Back 4° Up 28" Wide
Grips: Redline Hex Expert Grips with Plugs
Cranks: Redline Aluminum 3 Piece 175mm
Bottom Bracket: Euro Sealed
Pedals: Redline Race 9/16" Platform Pedal
Chain: KMC Z410
Sprocket: 44T Alloy
Front Hub: Redline Aluminum
Rear Hub: Redline Aluminum Flip Flop
Rims: Alloy Race 20 x 1.75" 36H
Spokes: Stainless Black Spokes, 14G
Cog Set: 14T
Tires: Vee Speedster (Front) 20 x 1.95" (Rear) 20 x 1.75"
Seat: Pivotal Race
Seat Post: Pivotal 26.8mm
Seat Clamp: Alloy 31.8
Lever: Tektro
Brakes: Tektro BX310 Linear
Extras:
Weight: TBA
Frame Specs
Toptube: 20.25"
Headtube Angle: 74°
Seattube Angle: 70°
Stand Over Height: TBA
BB Height: 11.5"
Chainstays: 15.5"
Sizing Guideline: Fits riders 5'3" to 5'.8"" tall
Need help building your complete bike? Check out our bike build video below.
NOTE: To ensure that every component on your bicycle is working properly, Dans Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
