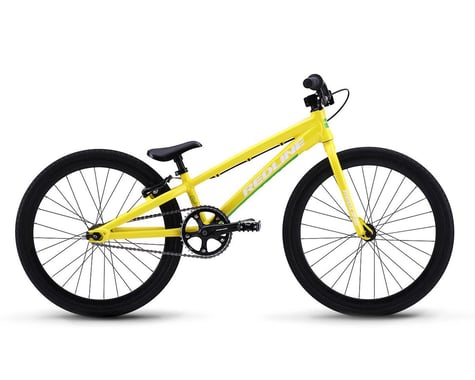

The Redline Proline BMX Series bike is complete and ready to race. The Proline Mini will take you to the next level. Offering great perormance and high quality at a mid-level price, the Proline Mini is a 20" BMX bike made with a Redline propretary aluminum alloy frame.
Frame: Propreitary Alloy Formed and Butted Tubing
Fork: Full Chromo with Tapered Legs
Headset: Sealed 1" Intergrated
Stem: Redline Mini Hollowpoint Aluminum 1" 40mm Frontload
Bars: Redline Junior Aluminum 2.5" 10° Back 2° Up 22" Wide
Grips: Redline Mini Hex Grips
Cranks: Redline Microline 3 Piece 140mm
Bottom Bracket: Sealed 1" Integrated
Pedals: Redline jr Aluminum Platform / Chromoly Spindle
Chain: KMC Z6
Sprocket: 38T, Alloy 110BCD
Front Hub: Redline Fully Sealed Aluminum
Rear Hub: Redline Fully Sealed Aluminum Cassette
Rims: Alex R450 20 x 1-1/8" 28H
Spokes: Stainless Black Spokes, 14G
Cog Set: 14T
Tires: Vee Speed Booster 20 x 1-1/8"
Seat: Redline Microline Seat Post Comboi
Seat Post: Aluminum Pivotal 22.2mm
Seat Clamp: 22.2
Brakes: Tektro 926AL
Extras: Redline Chain Tensioners
Headtube Angle: 72°
Seattube Angle: 69°
Stand Over Height: TBA
BB Height: 10.5"
Need help building your complete bike? Check out our bike build video below.
NOTE: To ensure that every component on your bicycle is working properly, Dans Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
