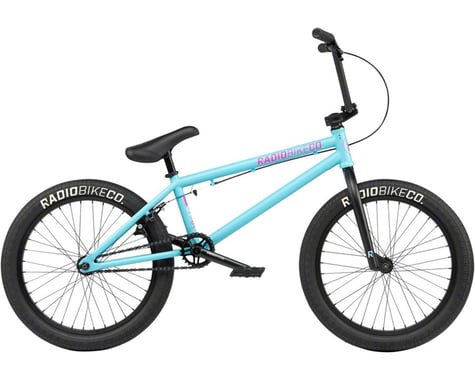

Radio Evolv BMX Bike Description:
The 2022 Radio Evol Bike is a step above your basic entry-level bike. With sealed bottom bracket and headset bearings, a semi-sealed cassette, and a chromoly top tube frame, this bike is an entry-level bike that is made to last. The sky blue option is great for those looking to stand out, while the matte black option allows you to stay low key while offering an oil slick sprocket for a small touch of pizzazz.
Specifications:
- Frame: Radio EVOL frame, Chromoly Top Tube, 1020 hi-tensile Steel
- Fork: Radio AM Fork, 1020 Hi-tensile Steel with Tapered Legs
- Headset: SALT Pro Integrated headset, Sealed Bearing
- Stem: Radio AM Top Load (50mm Reach)
- Bars: Radio AM 20 1020 Hi-Ten (8.8" Rise) (29" Wide) (11° Backsweep) (2° Upsweep)
- Grips: SALT EX Flangless Grips (155mm)
- Cranks: Radio Rookie Tubular 3-Piece, Chromoly (165mm Length) (8 Spline)
- Bottom Bracket: Mid Size, Press Fit, Sealed Bearing
- Pedals: Radio Pro Nylon Fiberglass Pedals
- Sprocket: Radio Vision, Steel (25T)
- Chain: Salt AM Chain, WZ1 type
- Front Hub: Radio Rookie Hub, Steel, Unsealed (3/8" Axle)
- Rear Hub: Radio AM, Semi-sealed Alloy Cassette (14mm Axle)
- Driver: 9T
- Front Rim: Radio Rookie, Alloy (Single Wall) (36H)
- Rear Rim: Radio Rookie, Alloy (Single Wall) (36H)
- Front Tire: Radio Rookie (20" x 2.3")
- Rear Tire: Radio Rookie (20" x 2.3")
- Seat: Radio Century Mid Padded (Combo)
- Seat Post: Seat/Post Combo
- Seat Clamp: Radio Slim, Alloy
- Brake Lever: Radio AM, Alloy
- Brakes: Radio AM, Alloy U-Brake
- Gyro: -
- Gyro Tabs: Drilled (Not Included)
- Brake Mounts: Welded
- Extras: -
- Color: Matte Sky Blue
- Weight: 27 lbs
Geometry:
- Toptube Length: 20.3"
- Chainstay Length: 13.2"
- Headtube Angle: 75°
- Seattube Angle: 71.5°
- Bottom Bracket Height: 11.75"
- Standover: 8.25"
- Recommended Sizing Guide: 5'2" - 5'6"
For assistance building your new bike, please check out our tech help section here for instructions and tips on how to build your bike to ensure it is safe.
Dan's Comp recommends riding with a helmet to protect that brain. Shop our selection of
freestyle helmets here.
Need help finding the right bike for you? Not sure what size would suit you best? Check out our BMX buyers guide video below!
Note: To ensure that every component on your bicycle is working properly, Dan's Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
This product was added to our catalog on September 28, 2022
