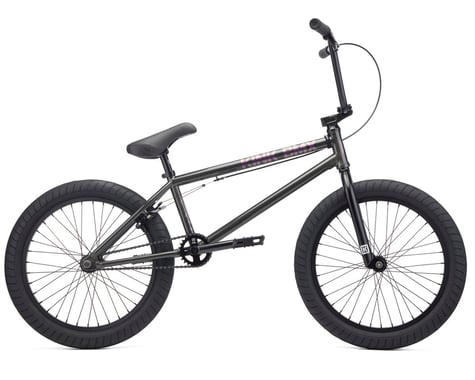

2027 Kink Setup XL BMX Bike Description:
The Kink 2027 Setup XL is the larger version of the Kink Setup bike, designed for taller riders who want the same legendary quality. As one of the best-selling mid-tier bikes, the Setup XL features a durable chromoly front triangle, fork, bars, and cranks, all equipped with sealed bearings in the headset, bottom bracket, and cassette hub for smooth and reliable performance. With a 21" toptube and 9.25" rise bars, the Setup XL offers the perfect fit for taller riders looking for a high-quality, versatile bike and you can choose between black gold or fern green to match your style.
The regular Kink Setup with a 20.5" toptube can be found here.
Specifications:
- Frame: Kink Setup XL Frame 4130 Chromoly HT/TT/DT
- Fork: Kink Circuit Fork 4130 Chromoly Steerer w/ Tapered Fork Legs (30mm Offset)
- Headset: Mission Sealed Integrated
- Stem: Kink Bold HRD (50mm Reach)
- Bars: Kink T900, 100% 4130 Chromoly (9.25" Rise)
- Grips: Kink Ace, Thrust Bar Ends
- Cranks: Kink Ridge 3pc Tubular Chromoly (170mm length) (8 Spline)
- Bottom Bracket: Sealed Mid (19mm)
- Pedals: Kink Hemlock
- Sprocket: Mission Breach (25T)
- Chain: Mission 410
- Front Hub: Mission Covert, Unsealed (3/8')
- Rear Hub: Mission Engage Sealed Cassette (14mm)
- Driver: Sealed (9T)
- Front Rim: Mission X7
- Rear Rim: Mission X7
- Front Tire: Kink Sever (20 x 2.4")
- Rear Tire: Kink Sever (20 x 2.4")
- Seat: Kink Plymouth Stealth Seat
- Seat Post: Mission Stealth
- Seat Clamp: Mission Slim
- Brake Lever: Mission Token
- Brakes: Mission Cease V2, Mission L3 Linear Cable
- Gyro: -
- Gyro Tabs: Drilled (Not Included)
- Brake Mounts: Welded
- Extras: -
- Color: Iridescent Black
- Weight: 27lbs 1oz
Geometry:
- Toptube Length: 21"
- Chainstay Length: 13.25"
- Headtube Angle: 75°
- Seattube Angle: 71°
- Bottom Bracket Height: 11.6"
- Standover: 9"
- Recommended Sizing Guide: 5'8" - 6'2"
For assistance building your new bike, please check out our tech help section here for instructions and tips on how to build your bike to ensure it is safe.
Dan's Comp recommends riding with a helmet to protect that brain. Shop our selection of
freestyle helmets here.
Need help finding the right bike for you? Not sure what size would suit you best? Check out our BMX buyers guide video below!
Note: To ensure that every component on your bicycle is working properly, Dan's Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
This product was added to our catalog on April 7, 2026
