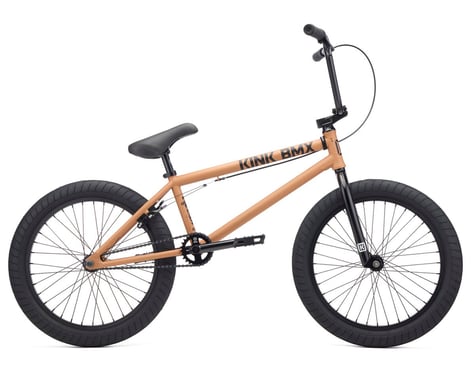

2027 Kink Setup BMX Bike Description:
The Kink 2027 Setup is modeled after the Gap that has been a top seller for over a decade, and each new model year sees it improving even further. Featuring a durable chromoly front triangle, fork, bars, and cranks, this bike is equipped with sealed bearings in the headset, bottom bracket, and cassette hub for smooth performance. Offering fantastic value at a mid-tier price, the 2027 Setup comes with modern sizing and geometry, including 9" rise bars and 170mm cranks. The 20.5" toptube is the most popular size, and you can choose between black gold or fern green to match your style.
The Kink Setup XL is available with a 21" toptube. Find it here.
Specifications:
- Frame: Kink Setup Frame 4130 Chromoly HT/TT/DT
- Fork: Kink Circuit Froke 4130 Chromoly Steerer w/ Tapered Fork Legs (30mm Offset)
- Headset: Mission Sealed Integrated
- Stem: Kink Bold HRD (50mm Reach)
- Bars: Kink T900, 100% 4130 Chromoly (9" Rise)
- Grips: Kink Ace, Thrust Bar Ends
- Cranks: Kink Ridge 3pc Tubular Chromoly (170mm length) (8 Spline)
- Bottom Bracket: Sealed Mid (19mm)
- Pedals: Kink Hemlock
- Sprocket: Mission Breach (25T)
- Chain: Mission 410
- Front Hub: Mission Covert, Unsealed (3/8')
- Rear Hub: Mission Engage Sealed Cassette (14mm)
- Driver: Sealed (9T)
- Front Rim: Mission X7
- Rear Rim: Mission X7
- Front Tire: Kink Sever (20 x 2.4")
- Rear Tire: Kink Sever (20 x 2.4")
- Seat: Kink Plymouth Stealth Seat
- Seat Post: Mission Stealth
- Seat Clamp: Mission Slim
- Brake Lever: Mission Token
- Brakes: Mission Cease V2, Mission L3 Linear Cable
- Gyro: -
- Gyro Tabs: Drilled (Not Included)
- Brake Mounts: Welded
- Extras: -
- Color: Oxide Orange
- Weight: 26lbs 16oz
Geometry:
- Toptube Length: 20.5"
- Chainstay Length: 13.25"
- Headtube Angle: 75°
- Seattube Angle: 71°
- Bottom Bracket Height: 11.6"
- Standover: 9"
- Recommended Sizing Guide: 5'4" - 5'8"
For assistance building your new bike, please check out our tech help section here for instructions and tips on how to build your bike to ensure it is safe.
Dan's Comp recommends riding with a helmet to protect that brain. Shop our selection of
freestyle helmets here.
Need help finding the right bike for you? Not sure what size would suit you best? Check out our BMX buyers guide video below!
Note: To ensure that every component on your bicycle is working properly, Dan's Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
