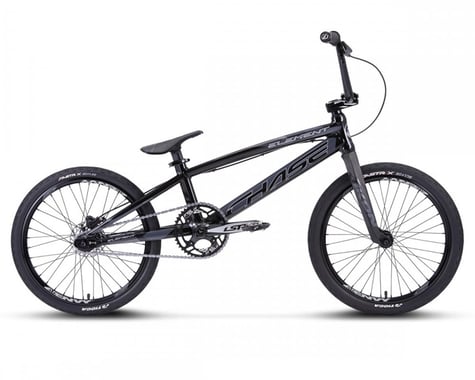

Chase Element Pro XXL BMX Bike Description:
The Chase Element Bike is built around the new Element 10 disc brake-specific 7005 T6 frame, which built with advanced double & triple-butted tubing, hydroformed & tapered tubing. Key features include an integrated chain tensioner, disc brake mount, and a Press Fit BB86 Bottom Bracket. The frame uses the same geometry as their championship-winning Chase ACT Carbon Fiber and RSP race frames, all with an Aero Shaped seat tube.
Built with top BMX components, the Element 10 includes an IKON Pro Carbon 20mm Fork, Sun Envy Alloy Rims, Tioga Fastr Tires, KMC Chain, Disc ISO Rear Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Excess LSP Cranks, Insight Chainring, Grips, and Hydraulic brakes.
Specifications:
- Frame: Chase Element Pro XXL, 7005 T6 Alloy, Enclosed rear dropouts (21.5" Top Tube)
- Fork: Ikon Carbon Pro, Alloy 20mm Drop Out w 3/8" adaptor, Alloy Top Cap (1-1/8")
- Headset: Integrated IS 42/42, Sealed Bearing (1-1/8")
- Stem: Chase Element 6061 T6 Alloy CNC Laser Etched Logo (31.8mm) (53mm Reach)
- Bars: Chase Element, Chromoly (31.8mm) (8.5" Rise) (28.5" Wide) (10° Backsweep) (2° Up Sweep)
- Grips: Insight C.O.G.S Alloy Clamps Laser Etched Logo, PVC End Plug (145mm)
- Cranks: Excess LSP 2 Piece Crank, Alloy Arm, 4 Bolt Spider, Chromoly Pedal Inserts, Alloy Chain Ring Bolts / Nuts (180mm)
- Bottom Bracket: Press Fit 68/73mm Cartridge Bearings
- Pedals: Nylon Platform Pedals (9/16")
- Chainring: Insight 4 Bolts 104mm 1/2" x 3/32" 5mm Alloy Ring (44T)
- Chain: KMC Z1 Narrow (1/2" x 3/32")
- Front Hub: Chase Element 3/8" Axle Hub Sealed Bearing (36H)
- Rear Hub: Chase Element Pro ISO, 3/8" Cassette Hub, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets (36H)
- Cog: 16T
- Front Rim: Sun Ringle Envy No Brake Surface, Schrader Valve (36H) (20 x 1.75)
- Rear Rim: Sun Ringle Envy No Brake Surface, Schrader Valve (36H) (20 x 1.75)
- Front Tire: TIOGA Fastr X, Wire Bead (20 × 1.75) (60 TPI)
- Rear Tire: TIOGA Fastr X, Wire Bead (20 × 1.60) (60 TPI)
- Seat: Elevn PC Pivotal
- Seat Post: Chase Aero Pivotal Alloy (27.2 x 260mm)
- Seat Clamp: Chase Aero Quick Release Alloy (27.2mm)
- Brake Lever: Hydraulic Series
- Brakes: Tektro HD-M280 Hydraulic Series, Resin Pads, Lock Disc Adaptor (120mm Rotor)
- Extras: Integrated Built-In Chain Tensioners
- Color: Black/Grey
- Weight: 21.05 lbs (with pedals)
Geometry:
- Toptube Length: 21.5"
- Chainstay Length: 14.5" (min)
- Headtube Angle: 74°
- Seattube Angle: 72.5°
- Bottom Bracket Height: 11.5"
- Standover: 9.2"
- Recommended Sizing Guide: 6' & over
For assistance building your new bike, please check out our tech help section here for instructions and tips on how to build your bike to ensure it is safe.
A new race bike calls for a matching helmet to complete the look. Browse our selection of
full face race helmets here.
Need help finding the right bike for you? Not sure what size would suit you best? Check out our BMX buyers guide video below!
Note: To ensure that every component on your bicycle is working properly, Dan's Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
This product was added to our catalog on July 18, 2024
