***Full info for the 2026 models have not yet been provided. Specs are subject to change. Final specs and photos coming soon***

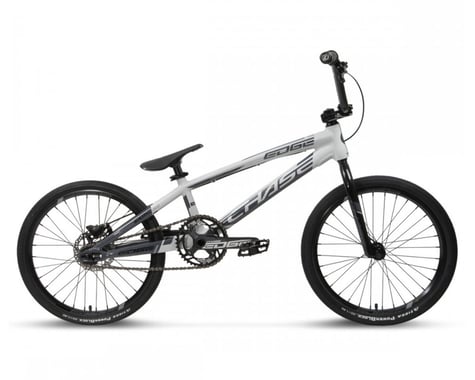

Chase Edge Expert XL BMX Bike Description:
The Chase Edge complete bike series is back for 2026 with a fresh line up of dialed bikes ready to go straight up to the gate. This triple butted hydroformed alloy frame features enclosed dropouts and integrated chain tensioners. The bike comes equipped with some high-end components, including the fan-favorite Tioga Powerblock tires and Chase Edge cranks. This series is topped off with the Shimano hydraulic disc brakes with reliable 140mm rotors. The expert XL size is designed for riders in the ballpark of 4'8" up to 5'1" and weighs in at just 19.5 pounds.
Specifications:
- Frame: Triple Butted Hydroformed 6061 T6 Alloy, enclosed rear dropouts, integrated chain tensioner system
- Fork: Chase Edge Expert, Full Chromoly (1-1/8" steer tube)
- Headset: Integrated, sealed bearing
- Stem: Chase Edge (50mm reach)
- Bars: Chase Edge (6.5" rise)
- Grips: Insight COGS, alloy clamps, laser etched logo, PVC end plug (130mm length)
- Cranks: Chase Edge, 2-piece alloy (170mm length)
- Bottom Bracket: Euro external BSA 24mm sealed bearing
- Pedals: Pro platform 9/16" barrel polished with grip nodes, axle boron steel, ball bearing
- Chainring: Insight 4 Bolt (BCD 104mm) (41T)
- Chain: KMC Z1 narrow (3/32")
- Front Hub: Sealed bearings (3/8" axle)
- Rear Hub: Sealed bearings, steel cassette body, triple precise rear hub clutch system with ISO disc brake standard (3 pawls at triple angle engagement for 24t ratchets) (3/8" axle)
- Cog: 16T
- Front Rim: Chase Edge 150, double wall (20 x 1.5") (32H)
- Rear Rim: Chase Edge 150, double wall (20 x 1.5") (32H)
- Front Tire: Tioga Powerblock (20 x 1.6")
- Rear Tire: Tioga Powerblock (20 x 1.4")
- Seat: Chase Edge Pro Pivotal
- Seat Post: Pivotal, alloy (27.2mm) (250mm length)
- Seat Clamp: Chase Edge Alloy QR (31.8mm)
- Brakes: Lever Shimano Disc Brake BL-MT200(R) Hydraulic, Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
- Extras: Integrated built-in chain tensioner with new lock disc adaptor
- Color: Cement/Grey
- Weight: 19.5 lbs
Geometry:
- Toptube Length: 20"
- Chainstay Length: 13.5"
- Headtube Angle: 73°
- Seattube Angle: 72°
- Bottom Bracket Height: 11.5"
- Standover: 8.8"
- Recommended Sizing Guide: 4'8" - 5'1"
Before You Hit The Track:
For assistance building your new bike, please check out our tech help section here for instructions and tips on how to build your bike to ensure it is safe.
A new race bike calls for a matching helmet to complete the look. Browse our selection of
full face race helmets here.
Need help finding the right bike for you? Not sure what size would suit you best? Check out our BMX buyers guide video below!
Note: To ensure that every component on your bicycle is working properly, Dan's Comp recommends that all bikes be assembled by a qualified mechanic. Improper assembly of your bicycle may lead to premature wear or failure of individual components such as headsets, crank assembly and wheels. Failure to do so may void the manufacturer warranty.
